Motherboard Specification

• Model: ASUS ROG STRIX Z490-G GAMING (WiFi 6)
• Form Factor: Micro ATX
• Socket: Intel LGA 1200 – supports 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
• Chipset: Intel Z490
• Memory Support:
– 4 × DDR4 DIMM slots (up to 128GB)
– Speeds: DDR4 2133 to 4600 MHz (OC)
– Dual-channel architecture
– Supports Intel XMP profiles
• Expansion Slots:
– 1 × PCIe 3.0 x16 (CPU)
– 1 × PCIe 3.0 x16 (PCH, x4 mode)
– 1 × PCIe 3.0 x1
• Storage Interface:
– 2 × M.2 Socket 3
• 1 × PCIe 3.0 x4 (Type 2242–22110)
• 1 × SATA & PCIe 3.0 x4 (Type 2242–2280)
– 6 × SATA 6Gb/s ports
• Networking:
– Intel® I225-V 2.5Gb Ethernet with LANGuard
– Intel® Wi-Fi 6 (802.11ax)
– Bluetooth 5.1
• Audio:
– SupremeFX S1220A codec
– DTS Sound Unbound, Sonic Studio III
• USB Ports:

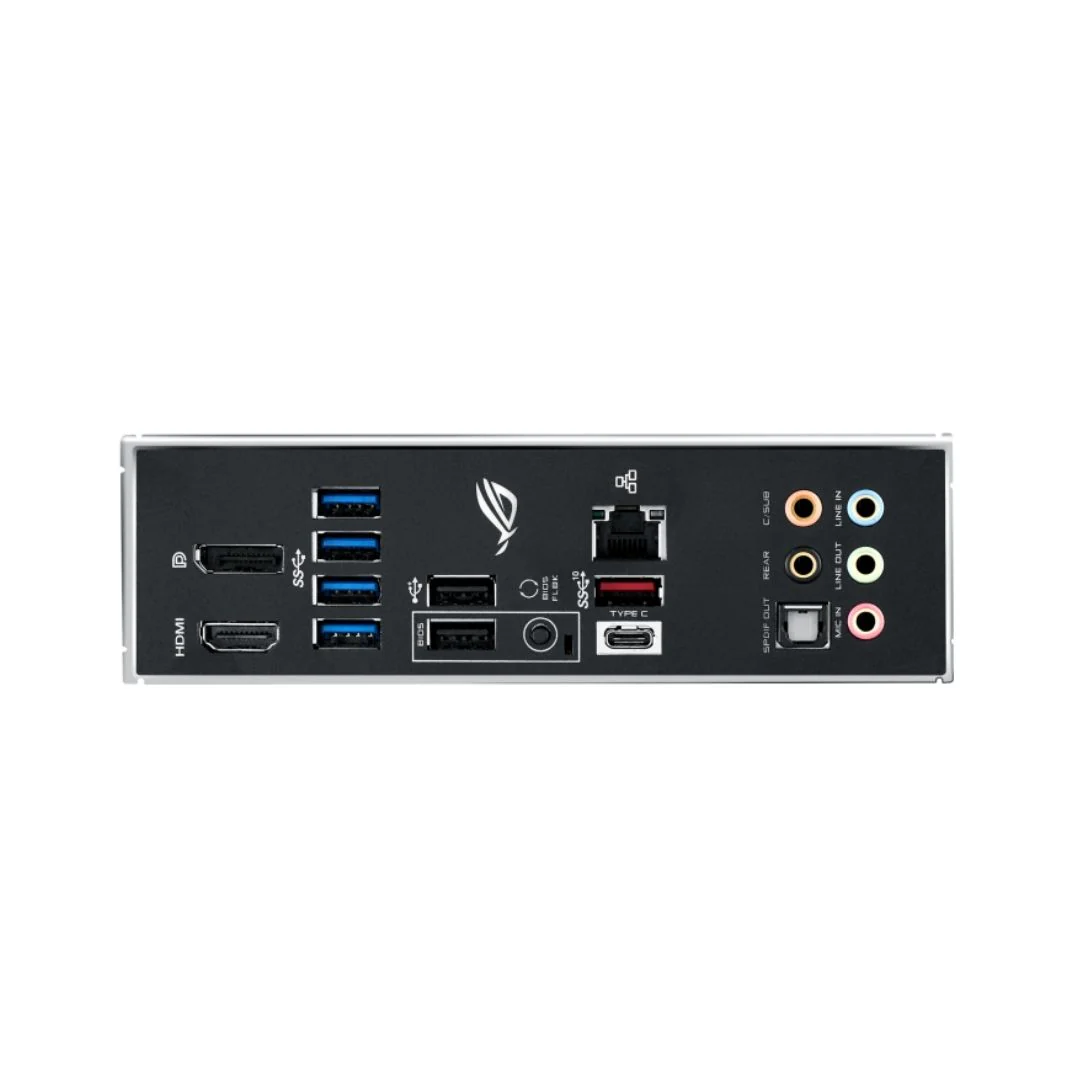

– Rear I/O:
• 2 × USB 3.2 Gen 2 (Type-A + Type-C)
• 4 × USB 3.2 Gen 1
• 2 × USB 2.0
– Internal Headers:
• 1 × USB 3.2 Gen 2 front panel
• 1 × USB 3.2 Gen 1
• 2 × USB 2.0
• Display Outputs:
– 1 × HDMI 1.4
– 1 × DisplayPort 1.4
• RGB & Customization:
– Aura Sync RGB lighting
– 2 × 4-pin RGB headers
– 2 × 3-pin Addressable Gen 2 headers
• Power Design:
– 12+2 power stages
– ProCool II power connector
– Digi+ VRM
• Cooling Features:
– VRM heatsink
– M.2 heatsinks
– Hybrid fan headers
– Fan Xpert 4 utility
