Design & Build

Color: Black
GPU Series: ASUS Dual GeForce RTX™ 5060 Ti OC Edition
Cooling: Dual Axial‑tech fans with optimized airflow
Form Factor: 2.5‑slot design, compact dual‑fan layout
Shroud: Sleek black finish with subtle accents

GPU Architecture

Architecture: NVIDIA Blackwell GB206
CUDA Cores: 4608
Ray Tracing Cores: 36
Tensor Cores: 144

Clock Speeds

Base Clock: 2407 MHz
Boost Clock (OC Mode): ~2632 MHz
Performance: ~24.25 TFLOPS FP32

Memory

Capacity: 8 GB
Type: GDDR7
Bus Width: 128‑bit
Speed: 28 Gbps effective
Bandwidth: 448 GB/s

Connectivity

Interface: PCIe 5.0 ×8

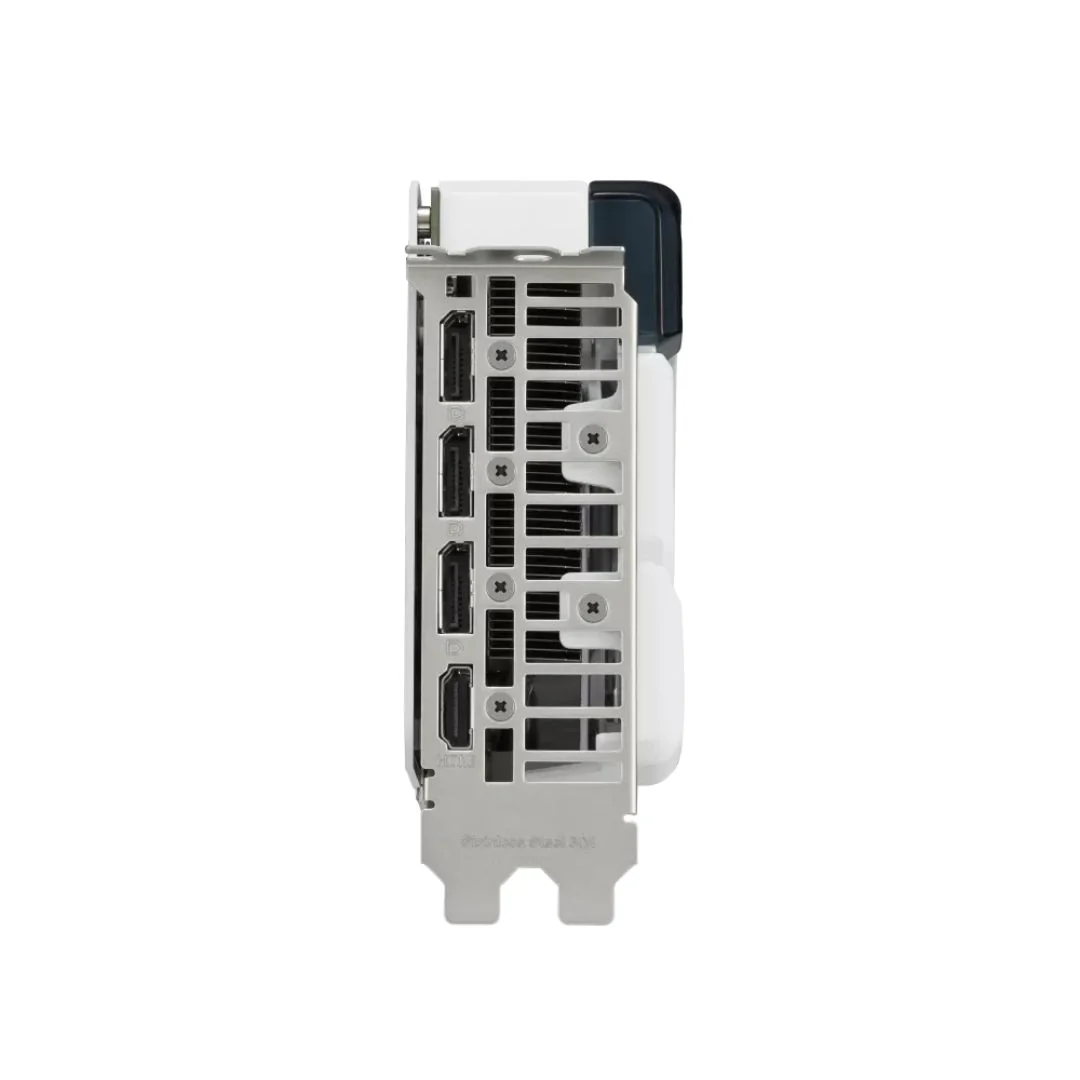

Outputs: HDMI 2.1a, DisplayPort 1.4a
Max Resolution: 7680 × 4320 (8K)
Multi‑Display Support: Up to 4 monitors

Dimensions

Size: ~267 × 135 × 52 mm

Package Contents

ASUS Dual GeForce RTX™ 5060 Ti 8GB OC GPU × 1
Quick Installation Guide × 1
Support Documentation × 1
