Graphics Card Specification

• Model: ASUS Dual GeForce RTX™ 5070 OC Edition – 12GB GDDR7
• GPU Architecture: NVIDIA Blackwell GB205
• CUDA Cores: 6144
• Memory: 12GB GDDR7
– Speed: 28 Gbps
– Interface: 192-bit
– Bandwidth: 672 GB/s
• Clock Speeds:
– Base Clock: 2325 MHz
– Boost Clock: 2542 MHz (OC Mode)
• Ray Tracing & AI:
– 4th Gen RT Cores
– 5th Gen Tensor Cores
– DLSS 4 support

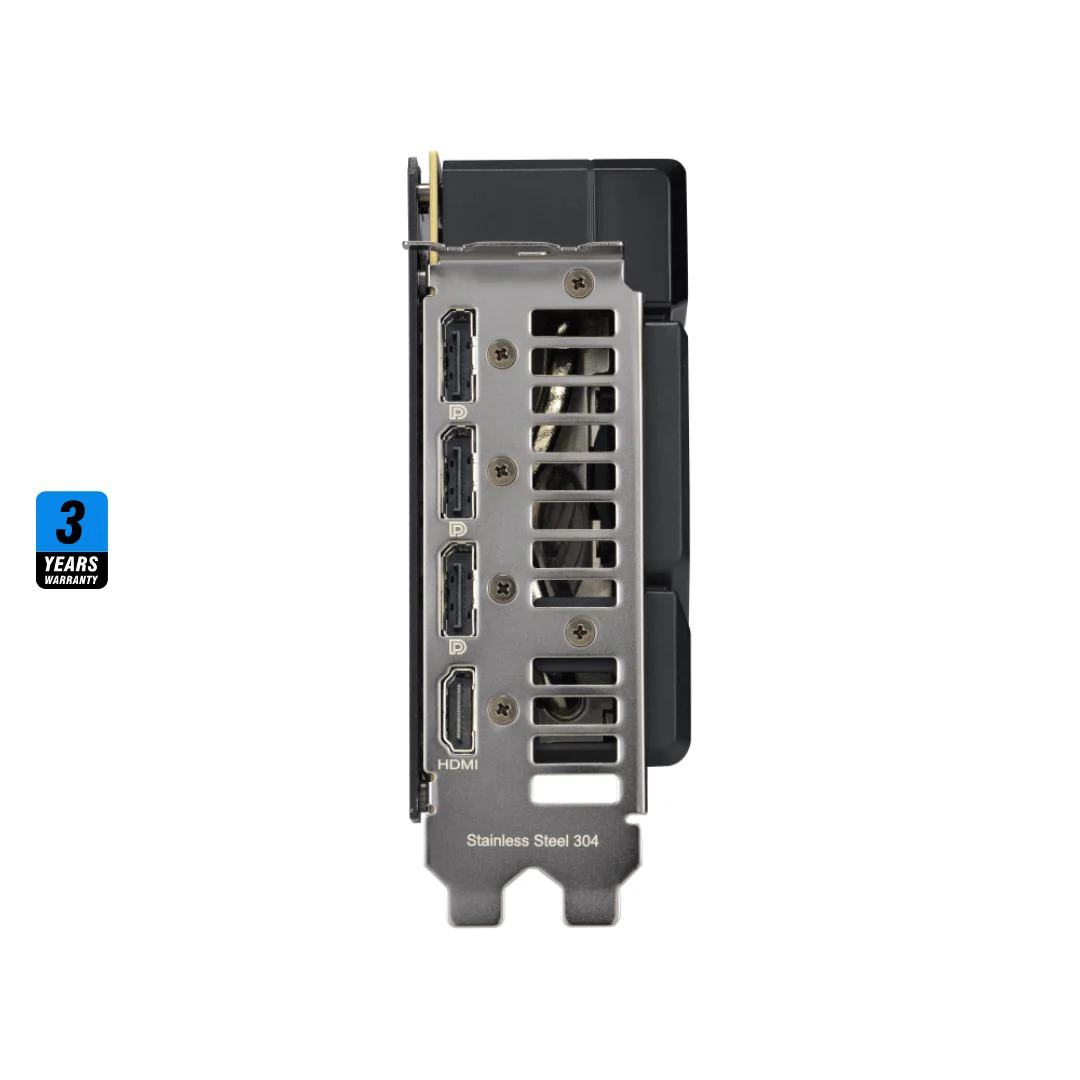

• Display Outputs:
– 1 × HDMI 2.1b
– 3 × DisplayPort 2.1b
– Max Resolution: 7680 × 4320
– Max Displays: 4
• Bus Interface: PCIe 5.0 x16
• Cooling:
– Dual Axial-tech fans
– 2.5-slot design
– 0dB Technology
• Power Requirements:
– TDP: 250W
– Recommended PSU: 750W
– Connector: 1 × 16-pin (12VHPWR)
• Dimensions: 249 × 126 × 50.6 mm
• Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready & Studio Drivers
• Warranty: 3-Year Manufacturer Warranty
