General

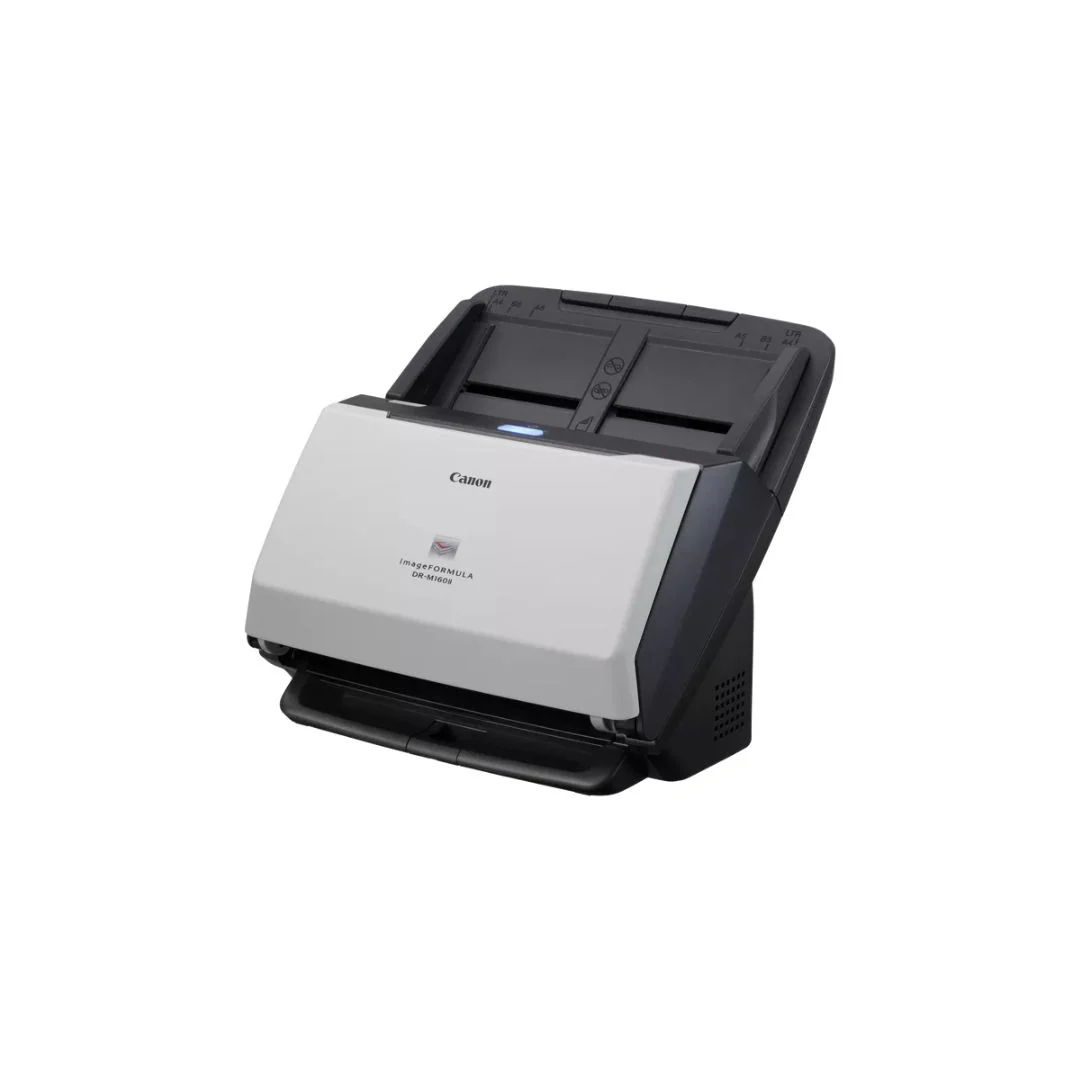

• Model: Canon imageFORMULA DR‑M160II
• Type: Document Scanner
• Functions: Scan (Simplex/Duplex)
• Daily Duty Cycle: Up to 7,000 scans/day

Scan

• Technology: CIS (Contact Image Sensor)
• Optical Resolution: Up to 600 dpi
• Output Resolution: 100–600 dpi
• Speed (A4, 200 dpi): Up to 60 ppm / 120 ipm (simplex/duplex)
• Colour Depth: 24‑bit input / 24‑bit output
• Grayscale: 8‑bit
• Modes: Colour, Grayscale, Black & White

Paper Handling

• Document Size: Width 50.8–216 mm, Length 54–356 mm
• Long Document Mode: Up to 3,000 mm
• Paper Thickness: 27–209 g/m²
• Feeder Capacity: 60 sheets (80 g/m²)
• Separation: Retard Roller Method

Features

• Image Processing: Auto Colour Detection, Text Enhancement, Deskew, Skip Blank Page, MultiStream
• Bundled Software: CaptureOnTouch, CapturePerfect, Kofax VRS

Connectivity

• Interface: Hi‑Speed USB 2.0

Physical

• Dimensions (W × D × H): 280 × 172 × 178 mm
• Weight: ~3.4 kg
• Colour: White

Power

• Consumption: Scanning ~27 W, Standby ~1.4 W, Power Off ~0.1 W
• Voltage: AC 100–240 V, 50/60 Hz

Consumables

• Roller Kit: Exchange after ~200,000 scans
• Separation Pad: Exchange after ~50,000 scans
