Display Performance

Model: Huion Kamvas 12
Panel Size: 11.6 inch
Resolution: 1920 x 1080 (16:9) Full HD
LCD Type: IPS
Full Lamination: Yes (Reduces parallax to the minimum)
Anti-glare: Anti-glare Matte Protective Film pre-applied
Contrast Ratio: 1000:1
Brightness: 220cd/m2
Response Time: 25ms
Viewing Angle: 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10)
Color Gamut: 120% sRGB
Display Color: 16.7M (8bit)

Pen Technology

Pen Model: PW517 (Battery-Free)
Pen Technology: Battery-Free Electromagnetic Resonance (PenTech 3.0)
Pressure Levels: 8192 Levels
Pen Resolution: 5080 LPI
Tilt Support: ±60°
Sensing Height: 10mm
Report Rate: >200PPS
Accuracy: ±0.3mm (Center), ±2.0mm (Corner)

Connectivity & Compatibility

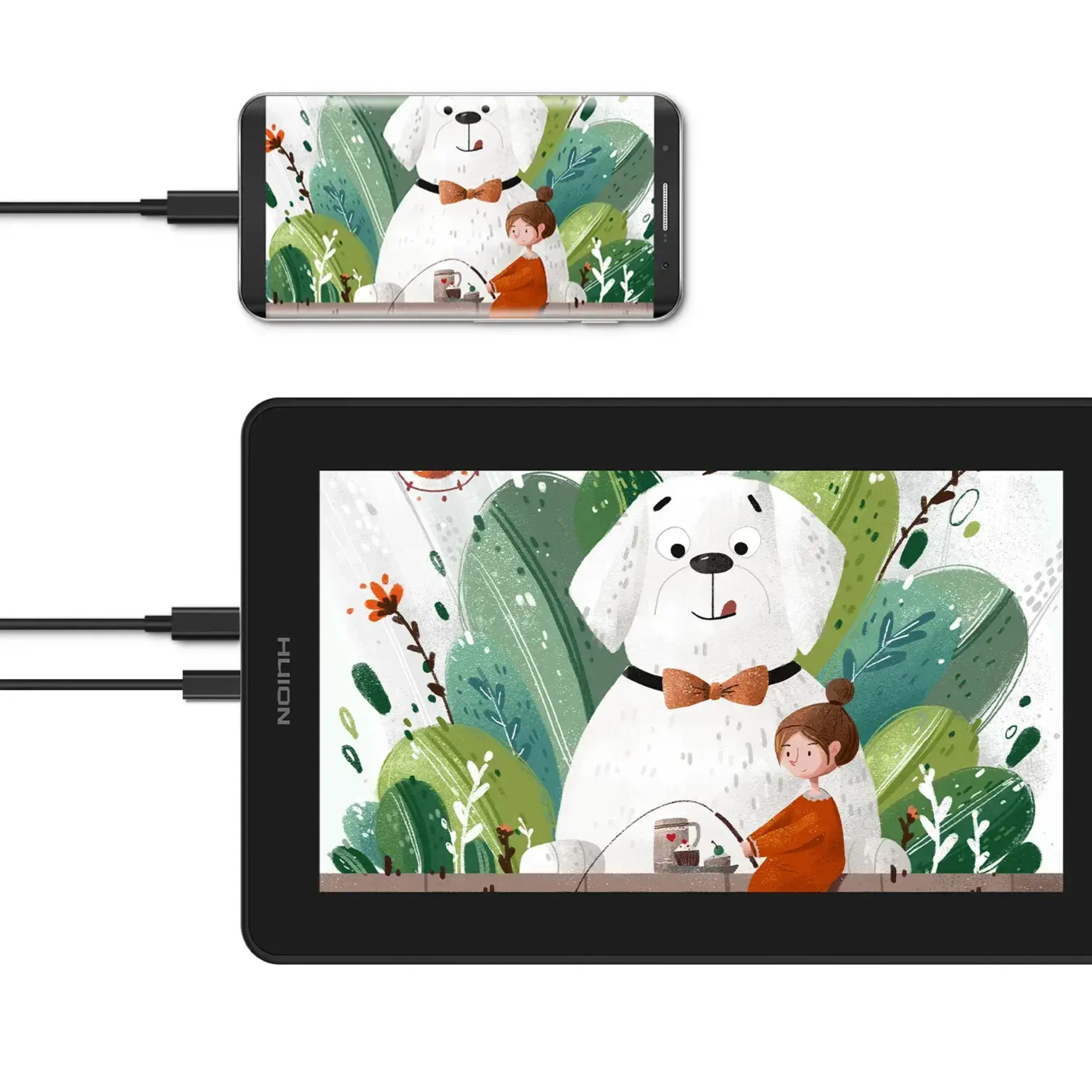

Video Interface: 3-in-1 USB-C Port, Full-featured USB-C Port
OS Support: Windows 7 or later, macOS 10.12 or later, Android (USB3.1 DP1.2), Linux

Physical Features

Programmable Press Keys: 8 Customized Press Keys
Dimension: 330.25 x 197 x 11.8mm
Working Area: 256.32 x 144.18mm
Net Weight: 735g
Color Options: Cosmo Black, Starfish Orange

Power Consumption

Input Voltage: DC 5V
Output Voltage: 5V 2A
Power Consumption: ≤7W
Standby Consumption: ≤0.3W

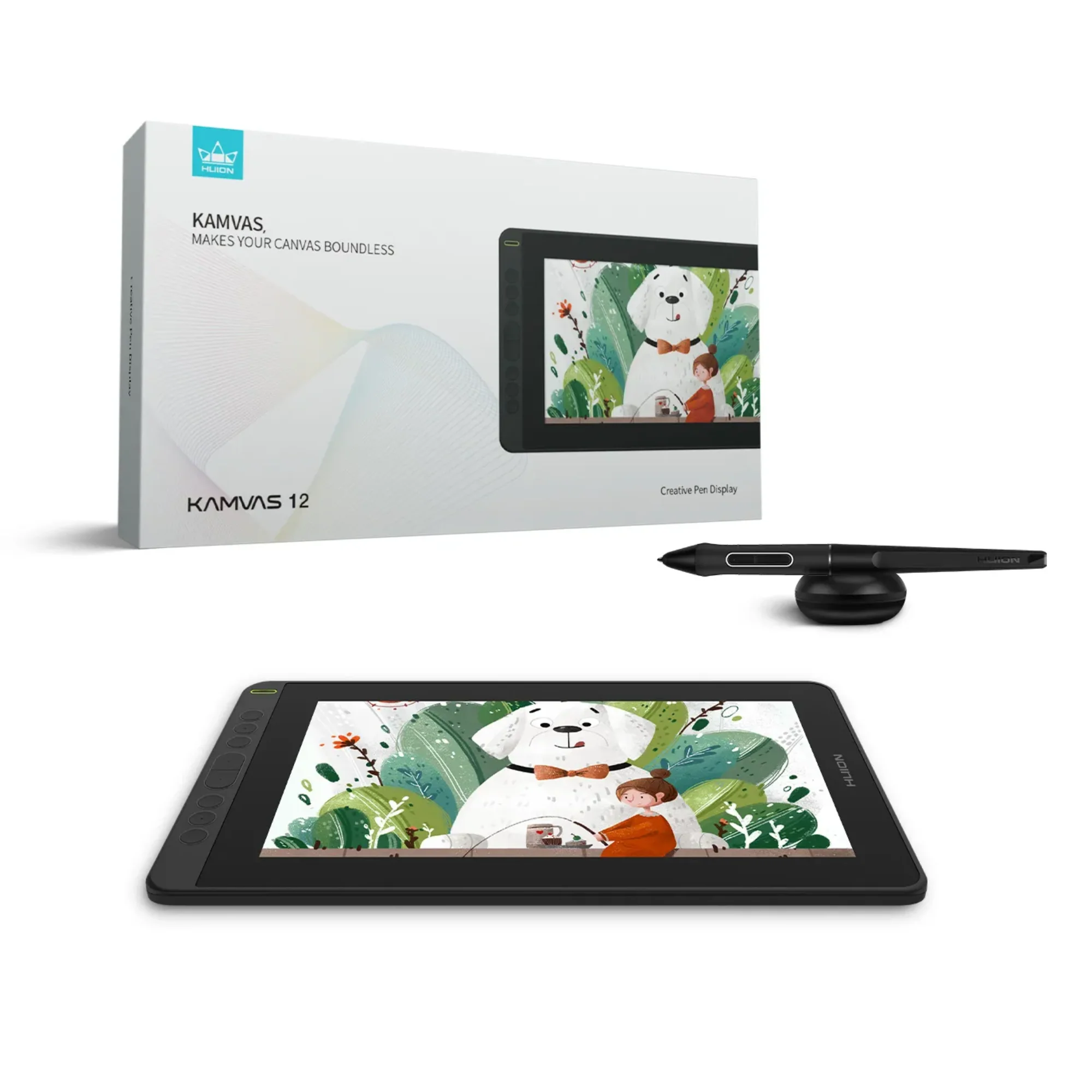

In the Box

Kamvas 12 Pen Display × 1
Battery-free Pen PW517 × 1
3-in-1 Cable × 1
USB Extension Cable × 1
Pen Holder PH05A × 1
Pen Nibs × 10
Nib Clip × 1
Glove × 1
Cleaning Cloth × 1
Quick Start Guide × 1
