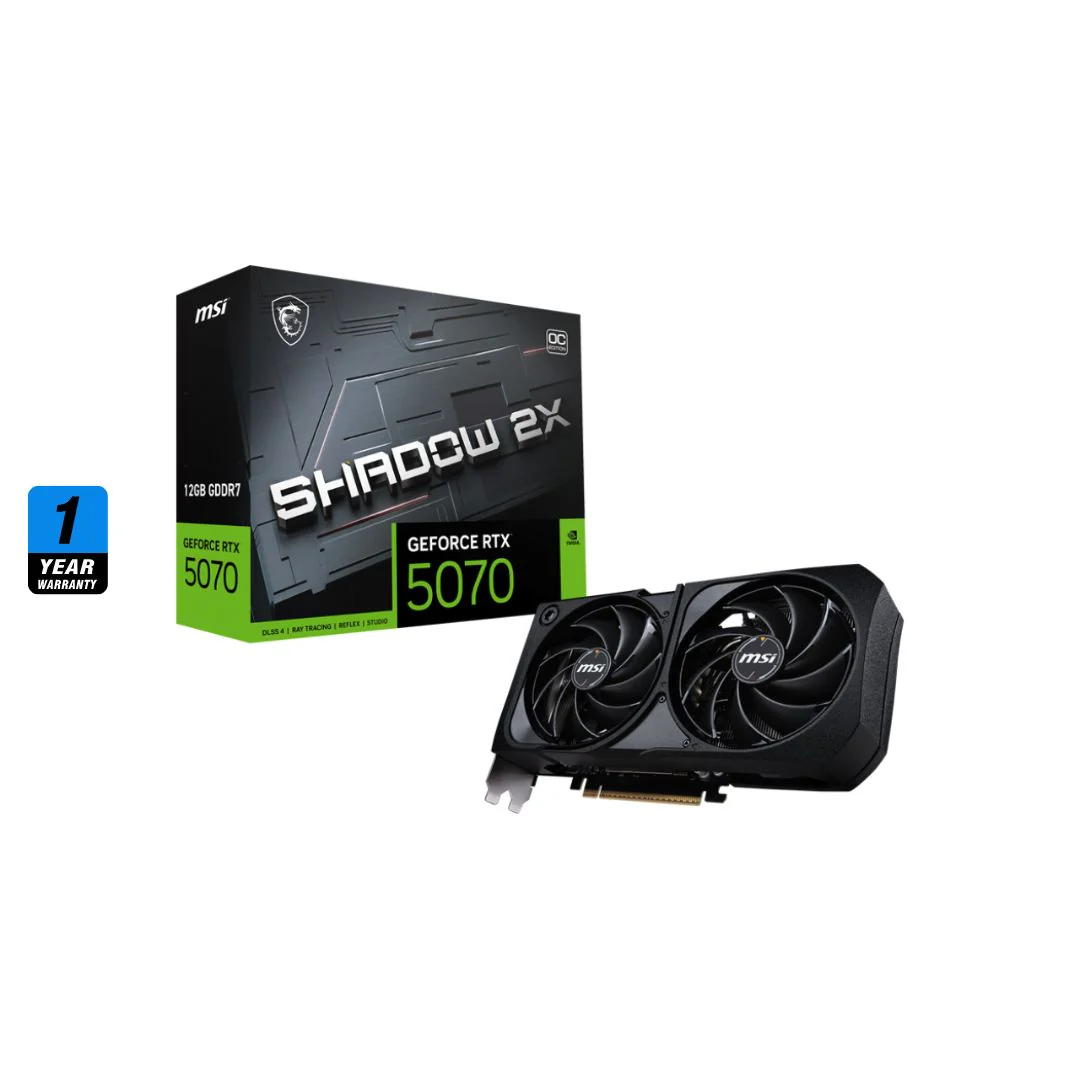

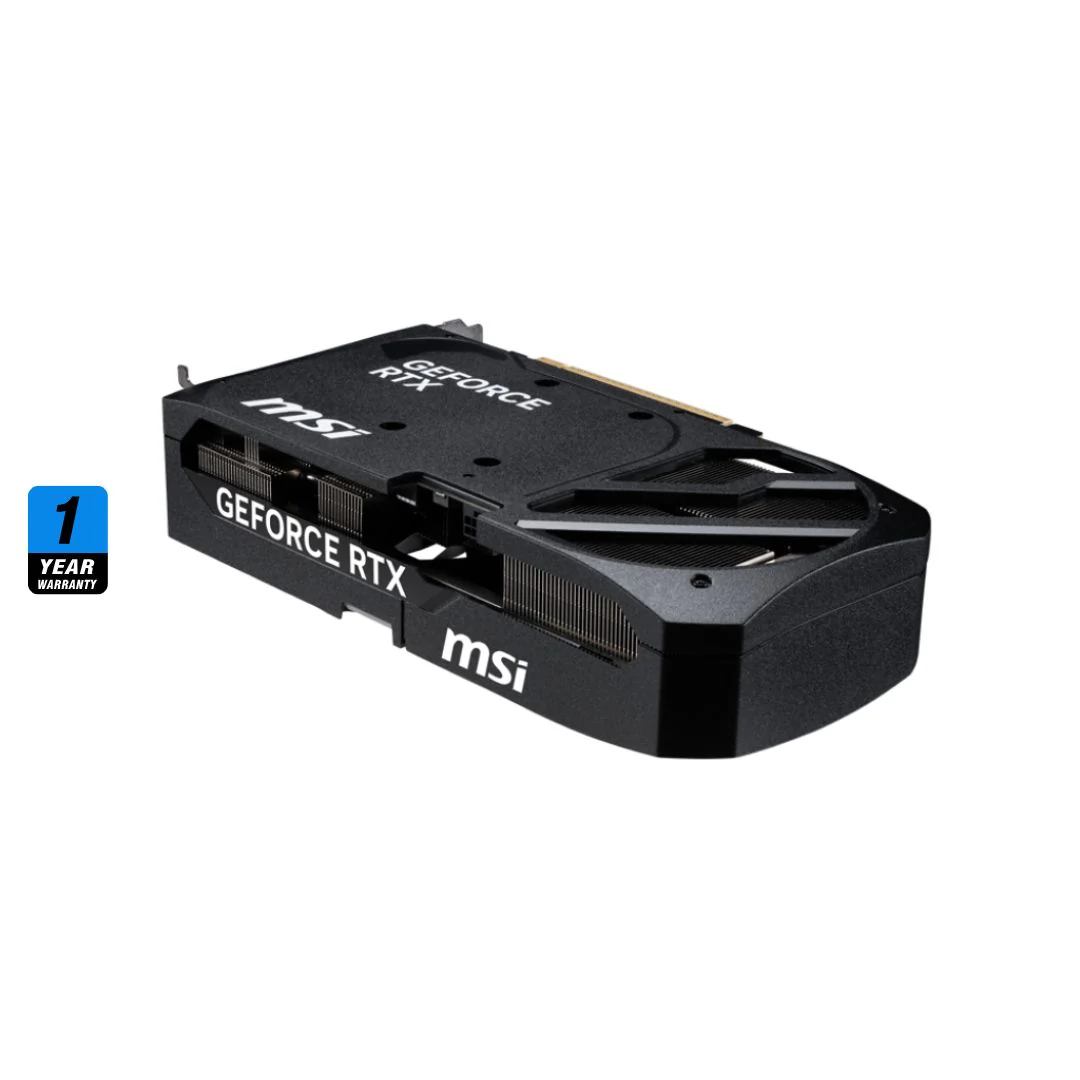

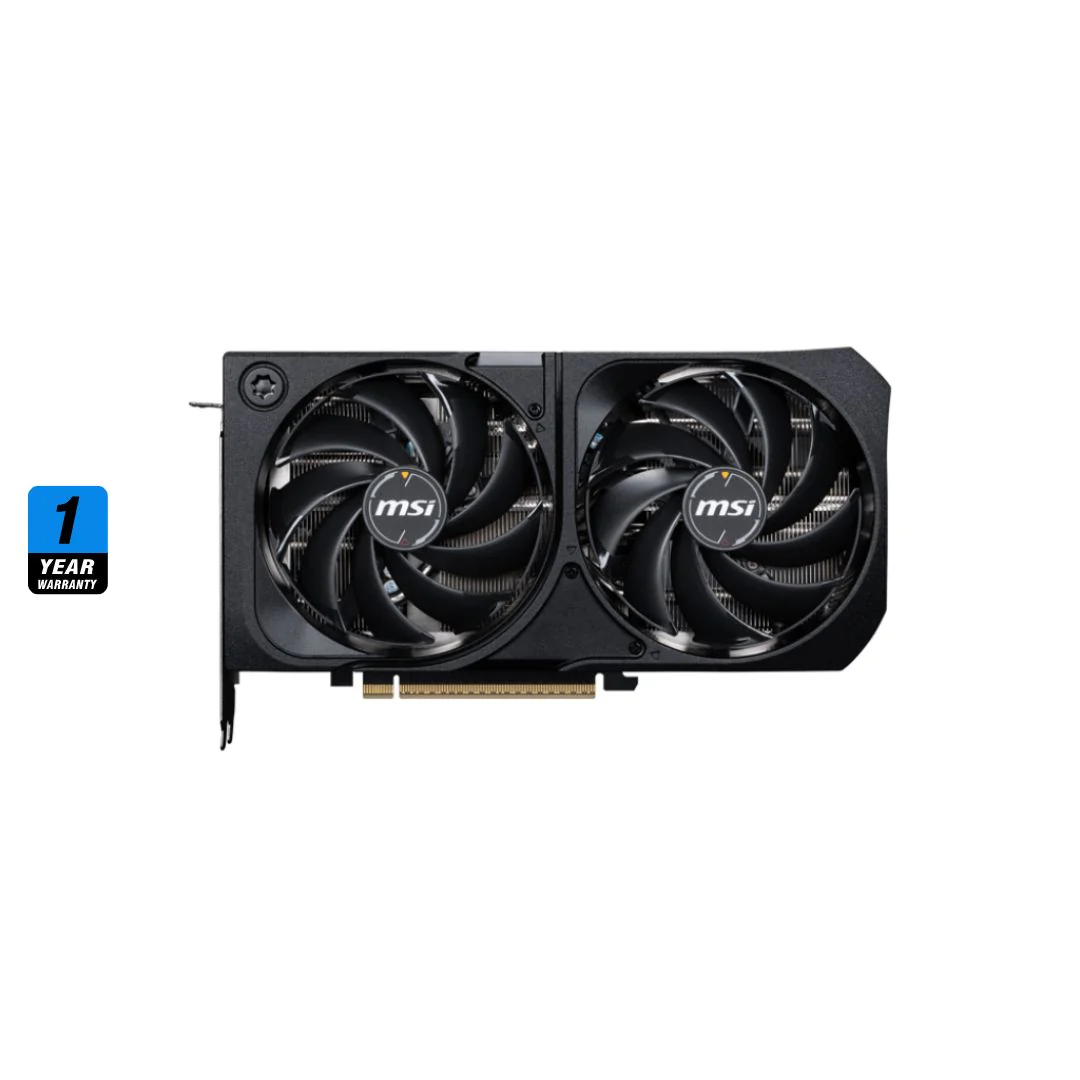

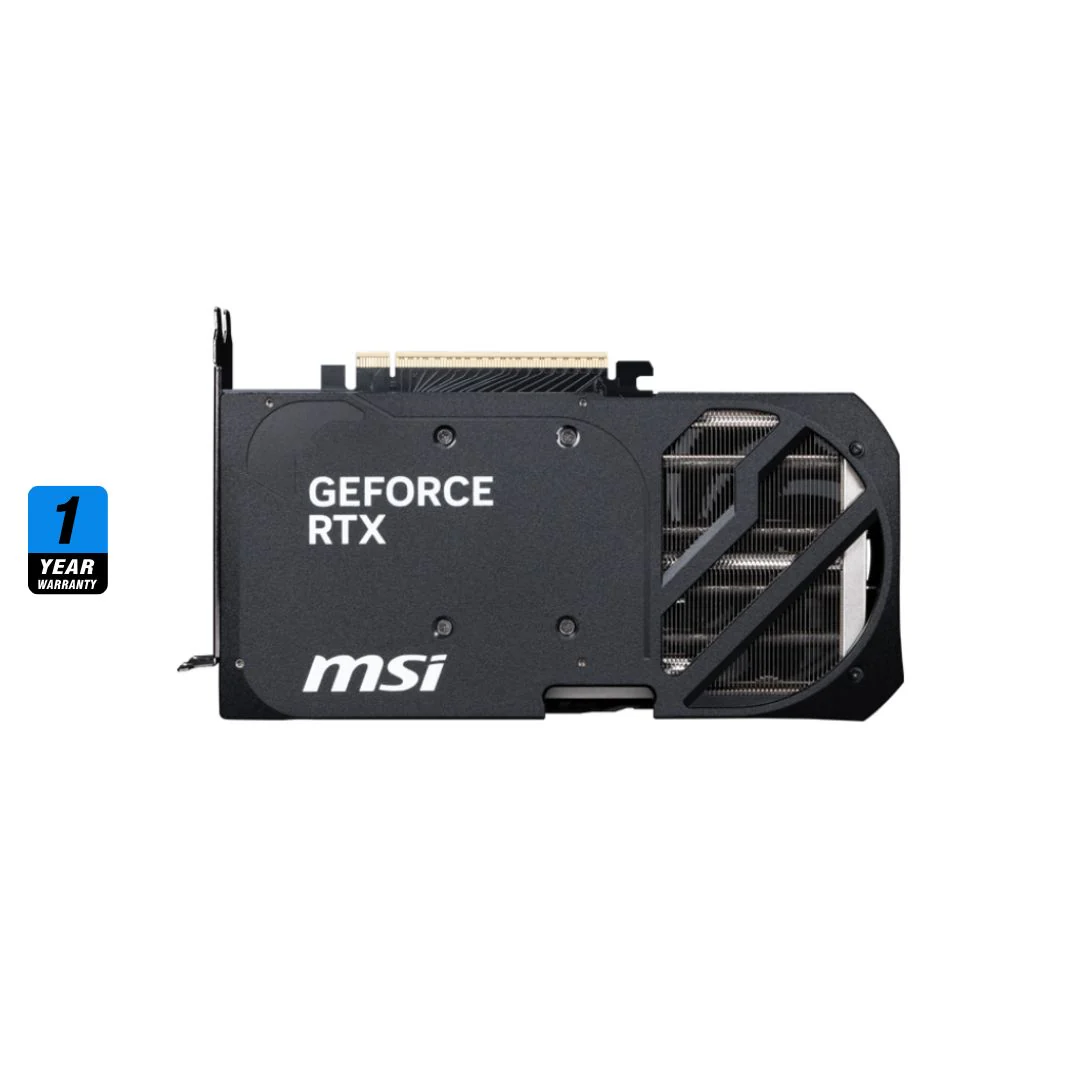

Graphics Card Specification

• GPU Architecture: NVIDIA Blackwell (GB205-300-A1)
• CUDA Cores: 6144
• Boost Clock: 2542 MHz
• Memory: 12GB GDDR7
• Memory Speed: 28 Gbps
• Memory Bus: 192-bit
• Bandwidth: 672 GB/s
• Ray Tracing Cores: 4th Gen
• Tensor Cores: 5th Gen
• Interface: PCIe 5.0 x16
• Cooling: Dual-fan TORX Fan 5.0, Air-cooled
• Power Connector: 1 x 16-pin
• TDP: 250W
• Recommended PSU: 600W

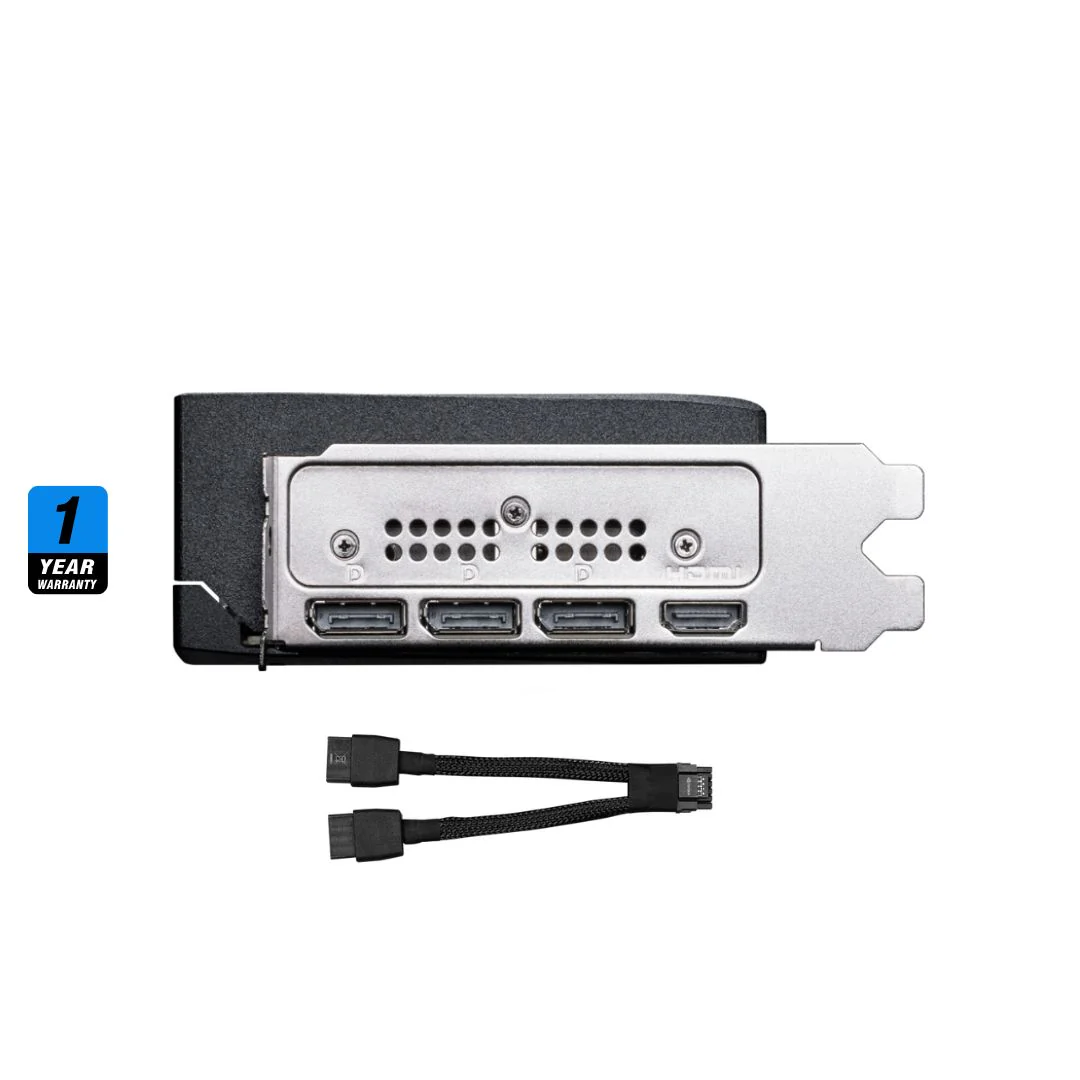

• Display Outputs:
– 3 x DisplayPort 2.1b
– 1 x HDMI 2.1b
• Max Resolution: 7680×4320 (8K UHD)
• Multi-Monitor Support: Up to 4 displays
• DirectX / OpenGL: DirectX 12 Ultimate, OpenGL 4.6
• Dimensions: 245mm (L) x 115mm (H) x 40mm (W), Dual-slot
• Features:
– DLSS 4 with Multi Frame Generation
– NVIDIA Reflex 2
– NVIDIA Studio & Broadcast support
– 9th Gen NVENC / 6th Gen NVDEC
