Graphics Card Technical Specifications

Memory Configuration

• Capacity: 16GB GDDR7

• Interface Width: 128-bit

• Memory Speed: 28 Gbps

• Effective Bandwidth: 448 GB/s

• Memory Technology: Next-generation GDDR7

Processing Power

• CUDA Cores: 4,608

• Clock Frequencies:

  • Base: 2,407 MHz

  • Boost: 2,662 MHz (Dynamic Boost)

• Compute Performance: ~24.5 TFLOPS (estimated)

Power Delivery

• Board Power: 180W TDP

• Power Input: 1× 8-pin PCIe

• PSU Recommendation: 600W minimum

• Efficiency: Optimized power curve

Display Capabilities

• Output Configuration:

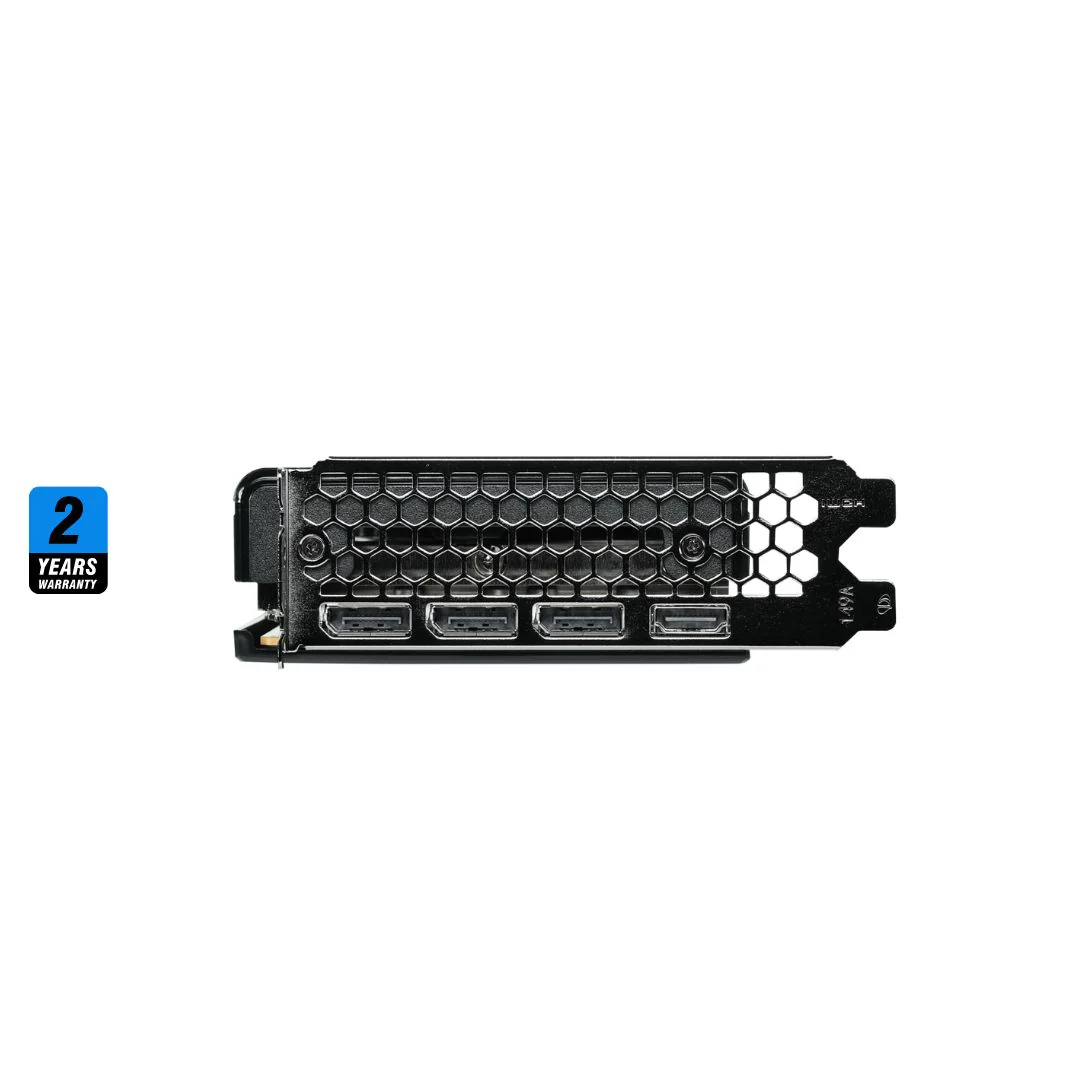

  • 3× DisplayPort 2.1b (UHBR20)

  • 1× HDMI 2.1b

• Resolution Support:

  • 7680×4320 @ 120Hz (8K with DSC)

  • 3840×2160 @ 480Hz (4K)

  • 2560×1440 @ 360Hz+

Physical Dimensions

• Form Factor: Dual-slot

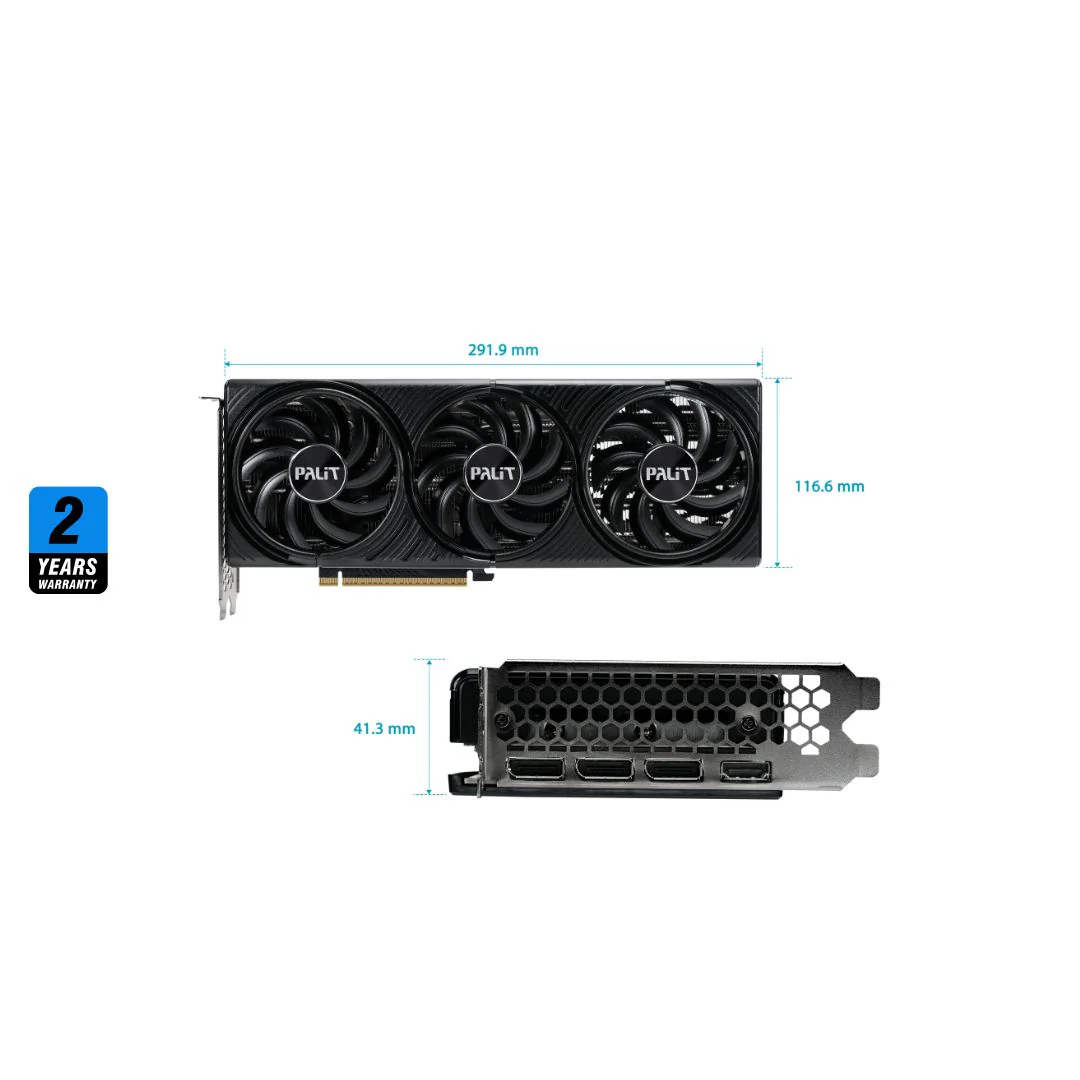

• Dimensions: 291.9 × 116.6 × 41.3 mm (L×H×W)

• Cooling Solution: Custom 2-slot thermal design

Advanced Features

• API Support:

  • DirectX 12 Ultimate

  • OpenGL 4.6

  • Vulkan 1.3

• PCIe Interface: Gen 5.0 ×16

• **Display Technologies:

  • DSC 1.2a

  • VRR (FreeSync/G-SYNC Compatible)

  • HDR10
