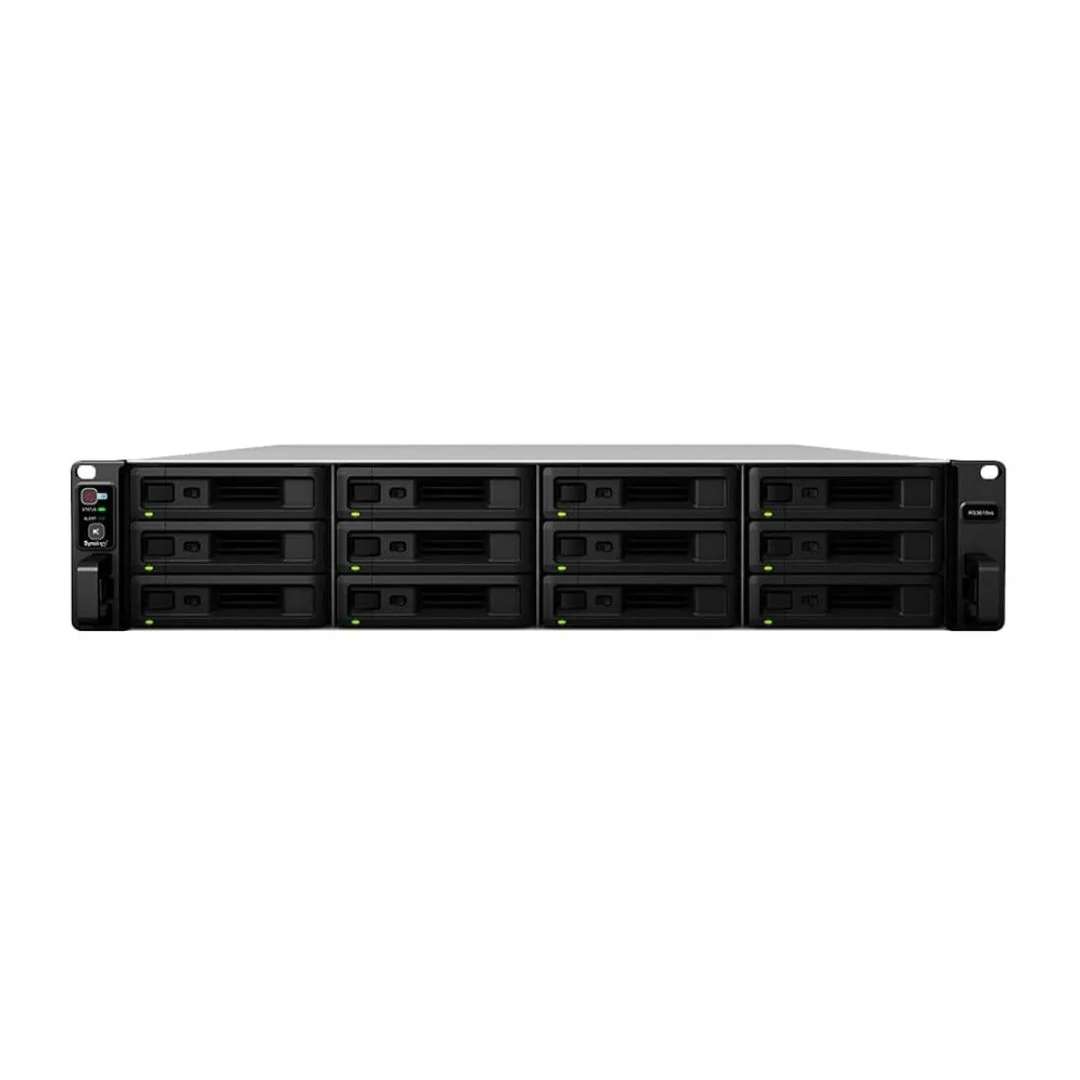

Synology RackStation RS3618xs Server
• Model: Synology RackStation RS3618xs
• Type: 2U Rackmount NAS Server (12‑Bay)
• CPU: Intel Xeon D‑1521 Quad‑Core 2.4 GHz (Turbo up to 2.7 GHz)
• Memory: 8 GB DDR4 ECC UDIMM (expandable up to 64 GB)
• Drive Bays: 12 × 3.5"/2.5" SATA HDD/SSD (hot‑swappable)
• Maximum Capacity: Up to 192 TB (using 12 × 16 TB drives), expandable to 36 drives with 2 × RX1217/RX1217RP units
• RAID Support: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• File System: Btrfs, EXT4
• Network: 4 × 1GbE RJ‑45 ports (Link Aggregation & Failover support), optional 10GbE via PCIe slot
• USB Ports: 2 × USB 3.0
• Expansion Slots: 2 × PCIe 3.0 ×8 slots (for NICs or M.2 SSD adapters)
• Performance: Sequential read/write up to ~2,358/1,178 MB/s (with 10GbE upgrade)
• Power Supply: Dual PSU support (redundant optional)
• Power Consumption: ~103 W (access), ~49 W (HDD hibernation)
• Dimensions: 88 × 445 × 570 mm (2U rackmount)
• Weight: ~14.5 kg
• Features:
– ECC memory for enterprise reliability
– Expandable storage with RX1217/RX1217RP units
– DSM (DiskStation Manager) OS with advanced backup, virtualization, and surveillance tools
– SSD cache support for boosted random IOPS
– VMware, Hyper‑V, Citrix certified for virtualization environments
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Synology RackStation RS3618xs Server
Synology RackStation RS3618xs Server
• Model: Synology RackStation RS3618xs
• Type: 2U Rackmount NAS Server (12‑Bay)
• CPU: Intel Xeon D‑1521 Quad‑Core 2.4 GHz (Turbo up to 2.7 GHz)
• Memory: 8 GB DDR4 ECC UDIMM (expandable up to 64 GB)
• Drive Bays: 12 × 3.5"/2.5" SATA HDD/SSD (hot‑swappable)
• Maximum Capacity: Up to 192 TB (using 12 × 16 TB drives), expandable to 36 drives with 2 × RX1217/RX1217RP units
• RAID Support: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• File System: Btrfs, EXT4
• Network: 4 × 1GbE RJ‑45 ports (Link Aggregation & Failover support), optional 10GbE via PCIe slot
• USB Ports: 2 × USB 3.0
• Expansion Slots: 2 × PCIe 3.0 ×8 slots (for NICs or M.2 SSD adapters)
• Performance: Sequential read/write up to ~2,358/1,178 MB/s (with 10GbE upgrade)
• Power Supply: Dual PSU support (redundant optional)
• Power Consumption: ~103 W (access), ~49 W (HDD hibernation)
• Dimensions: 88 × 445 × 570 mm (2U rackmount)
• Weight: ~14.5 kg
• Features:
– ECC memory for enterprise reliability
– Expandable storage with RX1217/RX1217RP units
– DSM (DiskStation Manager) OS with advanced backup, virtualization, and surveillance tools
– SSD cache support for boosted random IOPS
– VMware, Hyper‑V, Citrix certified for virtualization environments
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
• Model: Synology RackStation RS3618xs
• Type: 2U Rackmount NAS Server (12‑Bay)
• CPU: Intel Xeon D‑1521 Quad‑Core 2.4 GHz (Turbo up to 2.7 GHz)
• Memory: 8 GB DDR4 ECC UDIMM (expandable up to 64 GB)
• Drive Bays: 12 × 3.5"/2.5" SATA HDD/SSD (hot‑swappable)
• Maximum Capacity: Up to 192 TB (using 12 × 16 TB drives), expandable to 36 drives with 2 × RX1217/RX1217RP units
• RAID Support: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• File System: Btrfs, EXT4
• Network: 4 × 1GbE RJ‑45 ports (Link Aggregation & Failover support), optional 10GbE via PCIe slot
• USB Ports: 2 × USB 3.0
• Expansion Slots: 2 × PCIe 3.0 ×8 slots (for NICs or M.2 SSD adapters)
• Performance: Sequential read/write up to ~2,358/1,178 MB/s (with 10GbE upgrade)
• Power Supply: Dual PSU support (redundant optional)
• Power Consumption: ~103 W (access), ~49 W (HDD hibernation)
• Dimensions: 88 × 445 × 570 mm (2U rackmount)
• Weight: ~14.5 kg
• Features:
– ECC memory for enterprise reliability
– Expandable storage with RX1217/RX1217RP units
– DSM (DiskStation Manager) OS with advanced backup, virtualization, and surveillance tools
– SSD cache support for boosted random IOPS
– VMware, Hyper‑V, Citrix certified for virtualization environments
