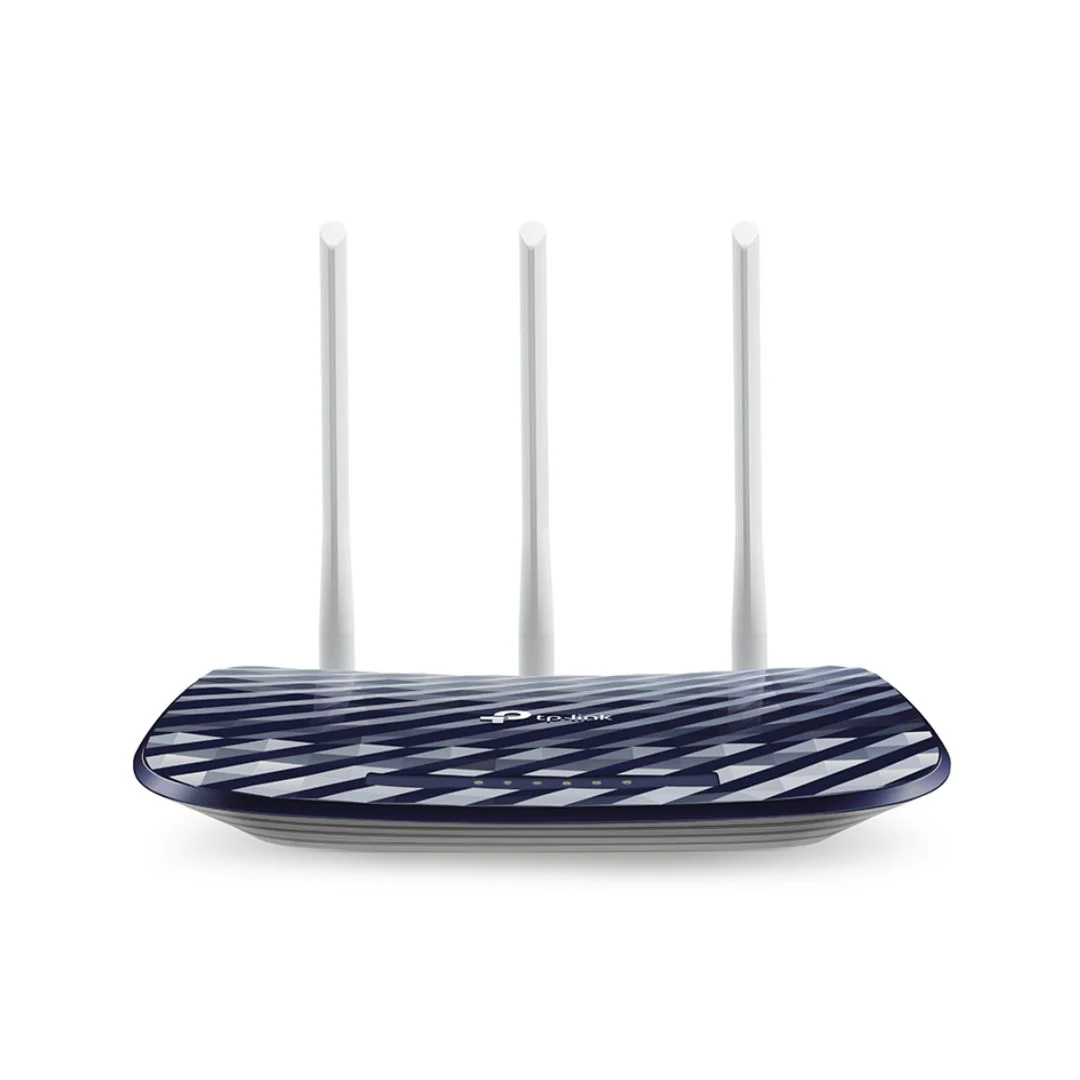

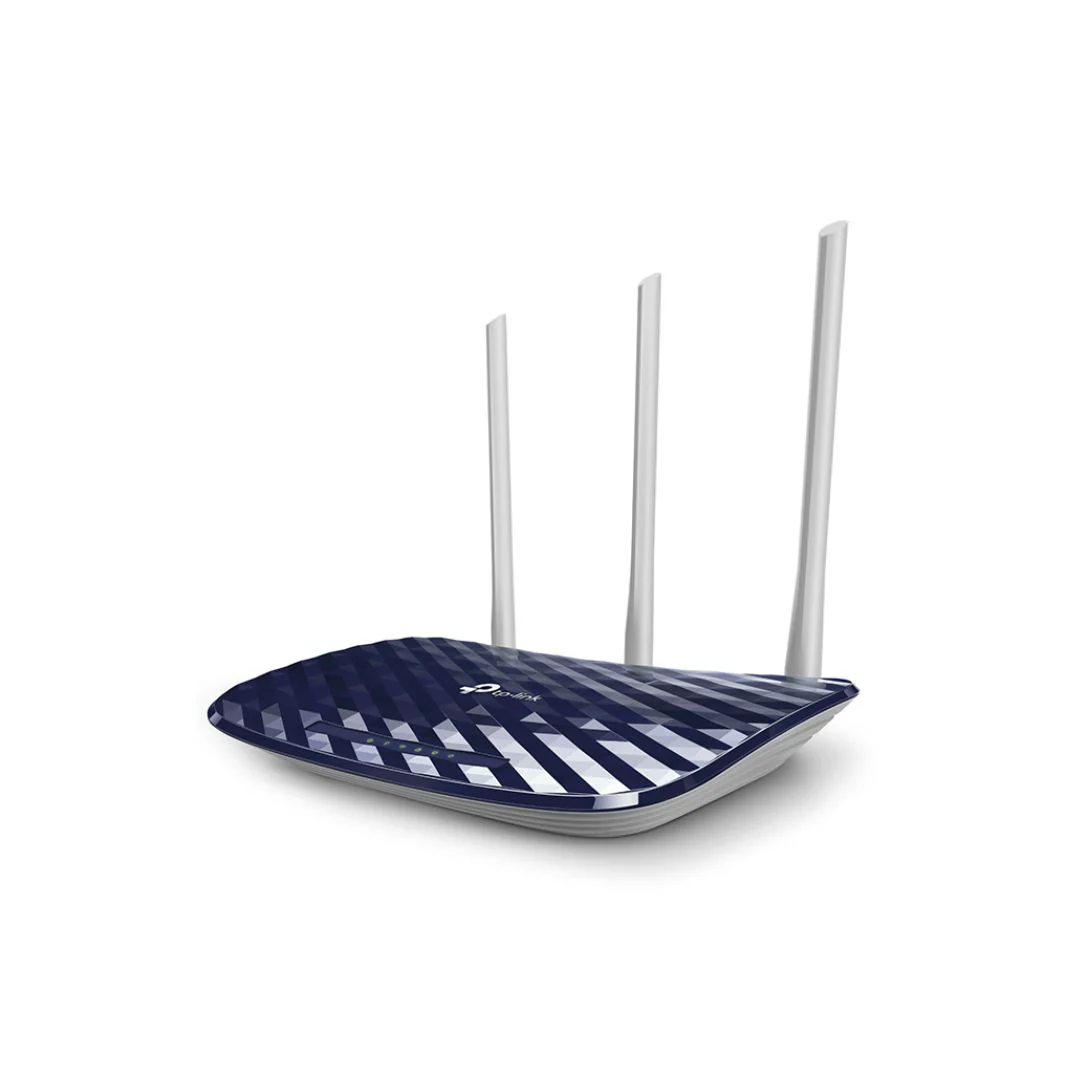

Router Specifications

• Model: TP‑Link Archer C20
• Type: AC750 Dual‑Band Wi‑Fi 5 Router
• Wi‑Fi Standard: IEEE 802.11ac (Wi‑Fi 5)
• Speed: AC750 dual‑band
  • 2.4 GHz: up to 300 Mbps
  • 5 GHz: up to 433 Mbps
• Antennas: 3 × external fixed antennas
• Coverage: Suitable for small to medium homes

Features

• Dual‑Band: Reduces interference, supports more devices
• Guest Network: Separate access for visitors
• Parental Controls: Manage internet access for children
• QoS: Bandwidth prioritization
• Security: WPA/WPA2 encryption, SPI firewall

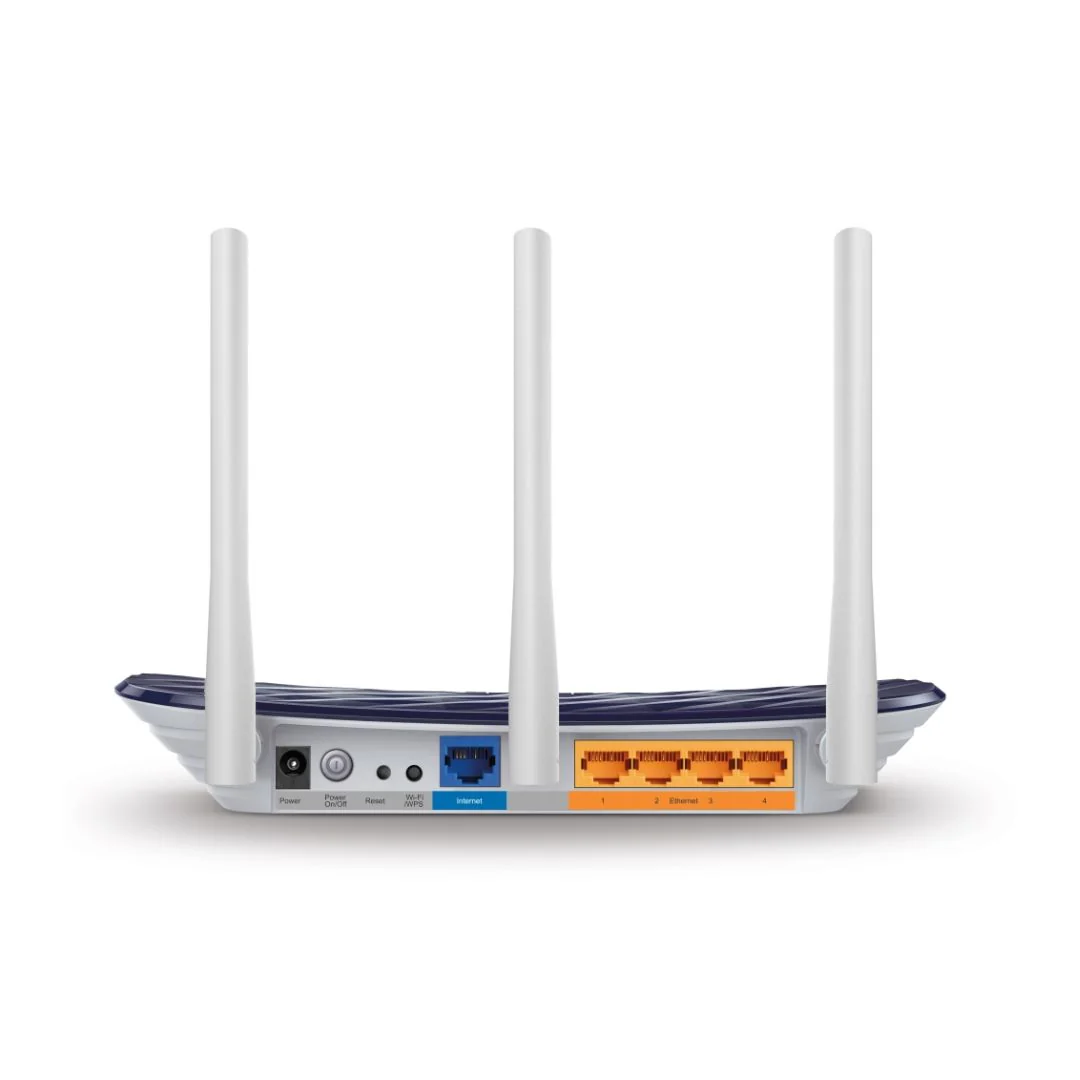

Connectivity

• WAN Port: 1 × 10/100 Mbps RJ‑45
• LAN Ports: 4 × 10/100 Mbps RJ‑45
• Buttons: WPS/Reset, Power On/Off
• Modes: Router mode, Access Point mode

Physical

• Dimensions (W × D × H): 230 × 144 × 35 mm
• Weight: ~0.3 kg
• Colour: Black

Package Contents

• Archer C20 Router × 1
• Power Adapter × 1
• Ethernet Cable × 1
• Quick Installation Guide × 1
• Warranty Information × 1
