Switch Specifications

• Model: TP‑Link LS‑1008G
• Type: Desktop Gigabit Ethernet Switch
• Ports: 8 × 10/100/1000 Mbps RJ‑45 ports
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K entries
• Buffer Memory: 1.5 MB

Features

• Plug & Play: No configuration required
• Flow Control: IEEE 802.3x full‑duplex, backpressure half‑duplex
• Green Technology: Energy‑efficient Ethernet (EEE)

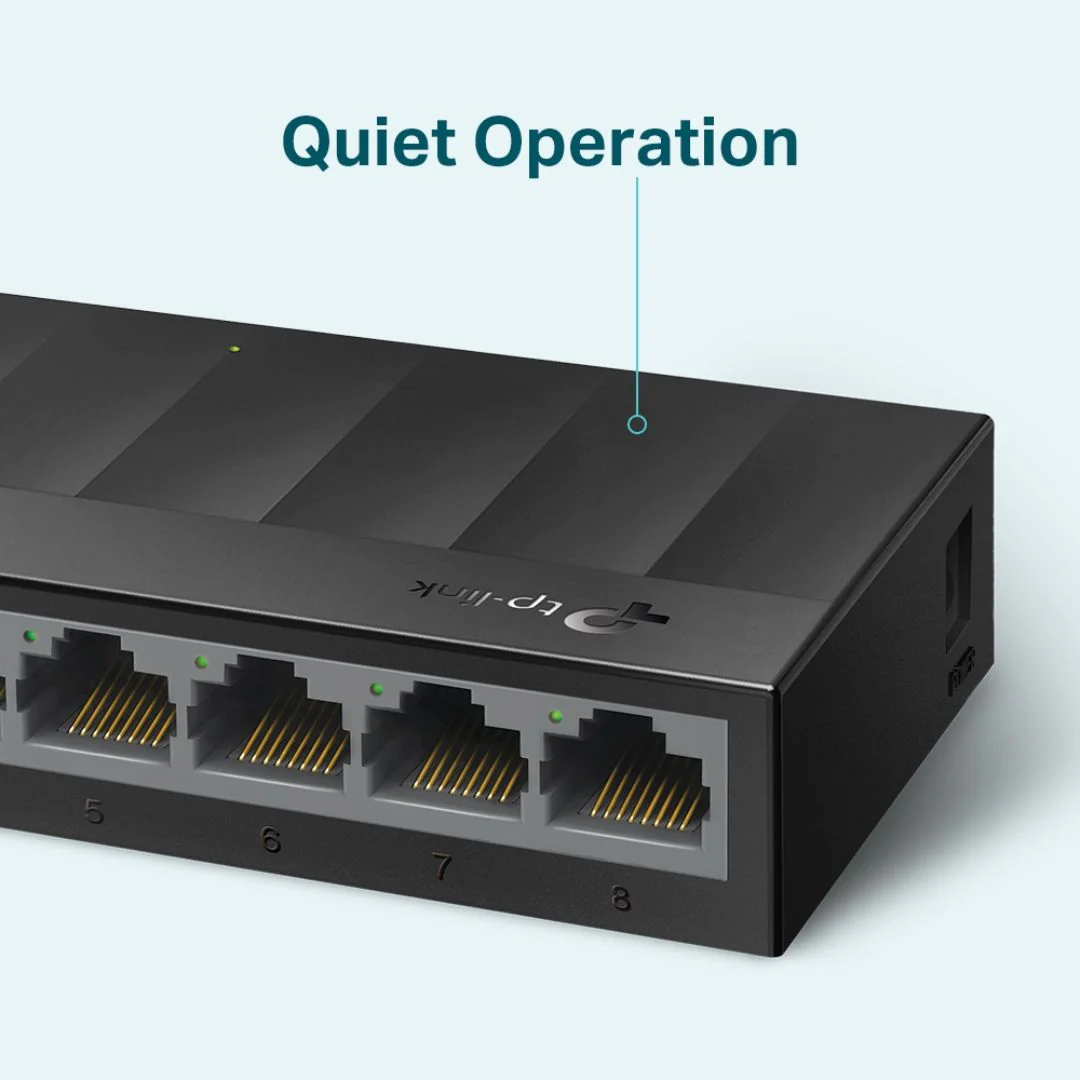

• Fanless Design: Silent operation
• Housing: Plastic case (lightweight design)

Physical

• Dimensions (W × D × H): 127 × 66.5 × 23 mm
• Weight: ~0.12 kg
• Mounting: Desktop use

Power

• Power Supply: External adapter, 5 VDC/0.6 A
• Power Consumption: Max ~3.9 W

Package Contents

• LS‑1008G Switch × 1
• Power Adapter × 1
• Quick Installation Guide × 1
• Warranty Information × 1
