Switch Specifications

• Model: TP‑Link TL‑SG1008P V7
• Type: Gigabit Desktop Switch with PoE+
• Ports: 8 × 10/100/1000 Mbps RJ‑45 ports
  • 4 × PoE+ ports (802.3af/802.3at compliant)
  • 4 × non‑PoE Gigabit ports
• PoE Budget: Total up to 64 W
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K entries
• Buffer Memory: 2 Mb

Features

• PoE+ Support: Supplies power and data over a single cable for IP cameras, VoIP phones, and access points

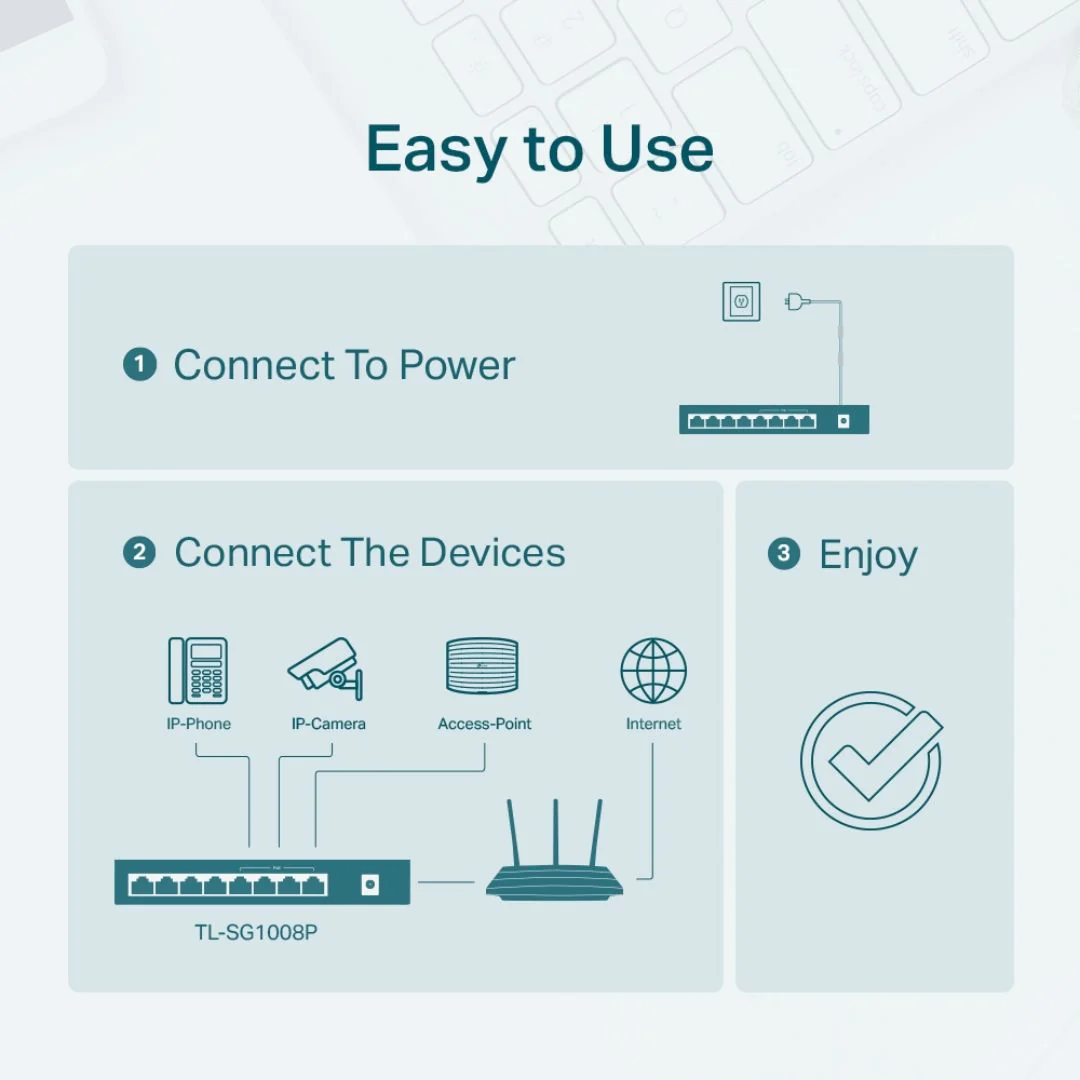

• Plug & Play: No configuration required
• Flow Control: IEEE 802.3x full‑duplex, backpressure half‑duplex
• Green Technology: Energy‑efficient Ethernet (EEE)
• Fanless Design: Silent operation
• Housing: Metal case for durability

Physical

• Dimensions (W × D × H): 180 × 90 × 25.5 mm
• Weight: ~0.6 kg
• Mounting: Desktop or wall‑mountable

Power

• Power Supply: External adapter, 53.5 VDC/1.31 A
• Power Consumption: Max ~72 W

Package Contents

• TL‑SG1008P V7 Switch × 1
• Power Adapter × 1
• Quick Installation Guide × 1
• Warranty Information × 1
