Switch Specifications

• Model: TP‑Link TL‑SG108 V9
• Type: Desktop Gigabit Ethernet Switch
• Ports: 8 × 10/100/1000 Mbps RJ‑45 ports
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K entries
• Buffer Memory: 1.5 MB

Features

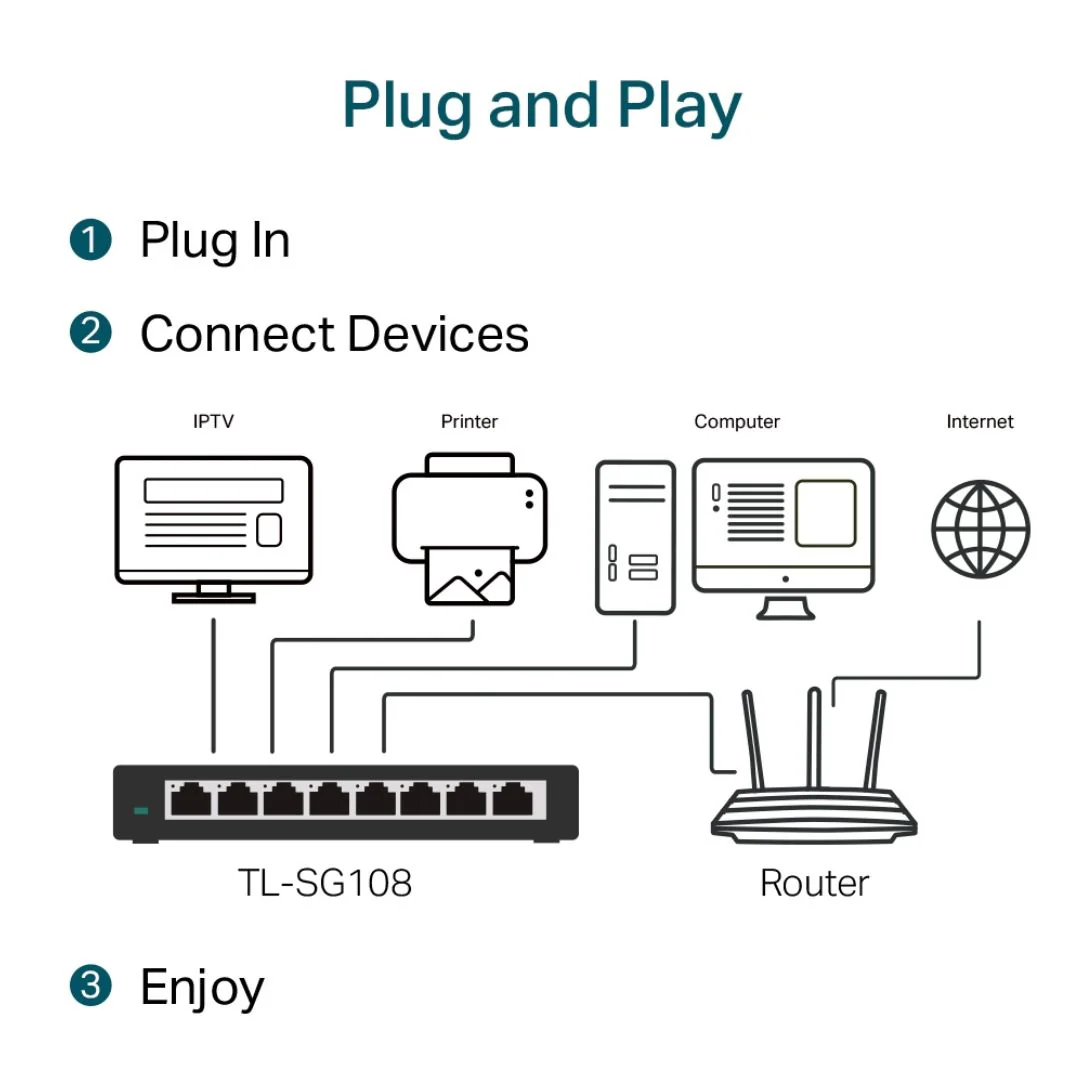

• Plug & Play: No configuration required
• Flow Control: IEEE 802.3x full‑duplex, backpressure half‑duplex
• Green Technology: Energy‑efficient Ethernet (EEE)
• Fanless Design: Silent operation
• Housing: Metal case for durability

Physical

• Dimensions (W × D × H): 158 × 101 × 25 mm
• Weight: ~0.6 kg
• Mounting: Desktop or wall‑mountable

Power

• Power Supply: External adapter, 9 VDC/0.6 A
• Power Consumption: Max 4.3 W

Package Contents

• TL‑SG108 V9 Switch × 1
• Power Adapter × 1
• Installation Guide × 1
• Warranty Information × 1
