Overview

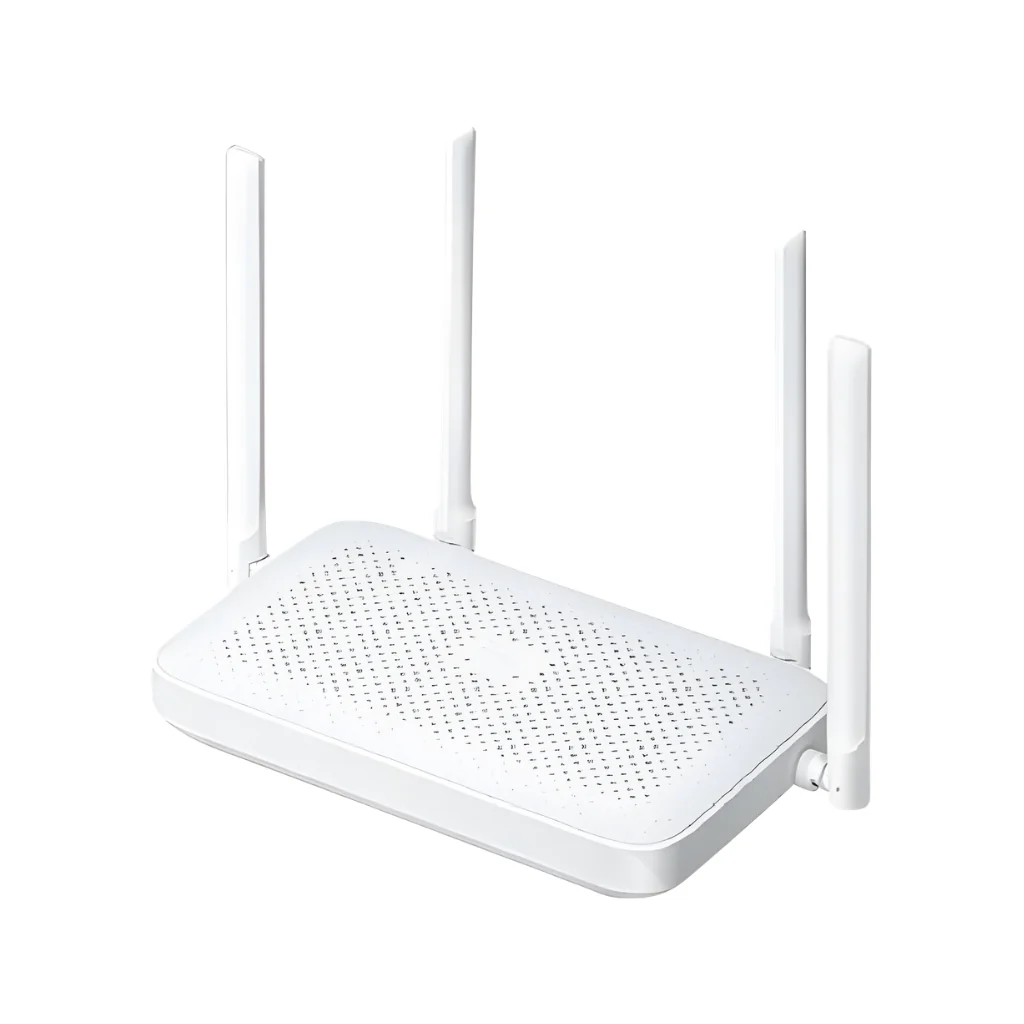

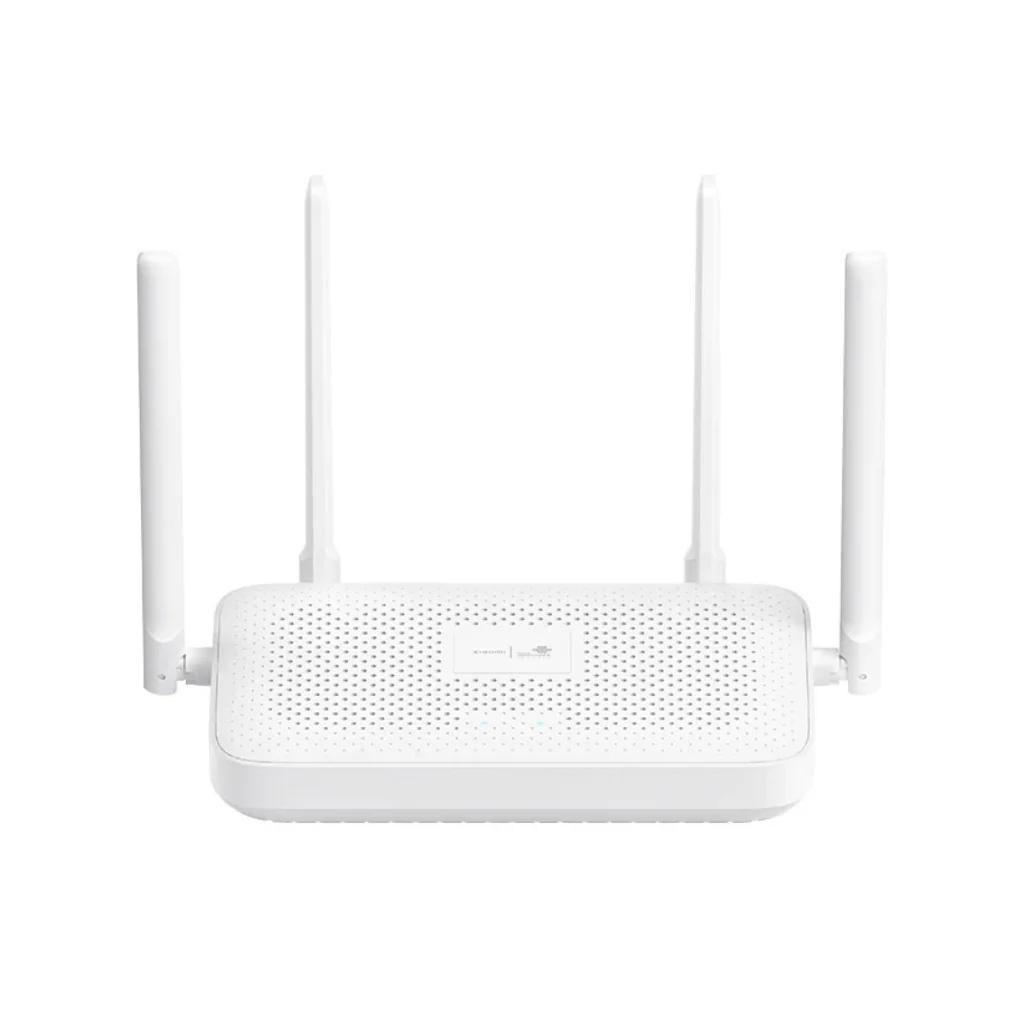

Product Name: Xiaomi Router AX1500
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax)
Maximum Theoretical Rate: 1500 Mbps (300Mbps @ 2.4GHz + 1201Mbps @ 5GHz)
Color: White
Key Features: Gigabit Auto-sensing Ports, IPTV Support, Xiaomi Mesh Networking, WPA3 Security

Wireless Specifications

Dual-band: 2.4 GHz & 5 GHz
2.4G Wi-Fi: 2×2 (Supports up to IEEE 802.11n protocol, theoretical rate 300Mbps)
5G Wi-Fi: 2×2 (Supports up to IEEE 802.11ax protocol, theoretical rate 1201Mbps)
Antennas: 4 × High-gain external antennas
Protocol Standards: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab

Hardware Configuration

Network Ports: 4 × 10/100/1000Mbps WAN/LAN auto-sensing ports
LED Indicators: 1 × System indicator light
Buttons: Reset button × 1, Mesh button × 1
Power Input: 12V / 1A

Software & Security

Operating System: MiWiFi ROM
Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption
Management: Web interface and Xiaomi Home App (Android & iOS)
Advanced Features: Guest network, Beamforming, BSS Coloring, OFDMA

Physical Specs & Environment

Dimensions: 247 mm × 143.5 mm × 178.7 mm
Heat Dissipation: Natural heat dissipation
Operating Temperature: 0–40℃
Operating Humidity: 10%–90% RH (non-condensing)

Package Contents

Xiaomi Router AX1500 × 1
Power Adapter × 1
Network Cable × 1
User Manual × 1
Warranty Card × 1
