Overview

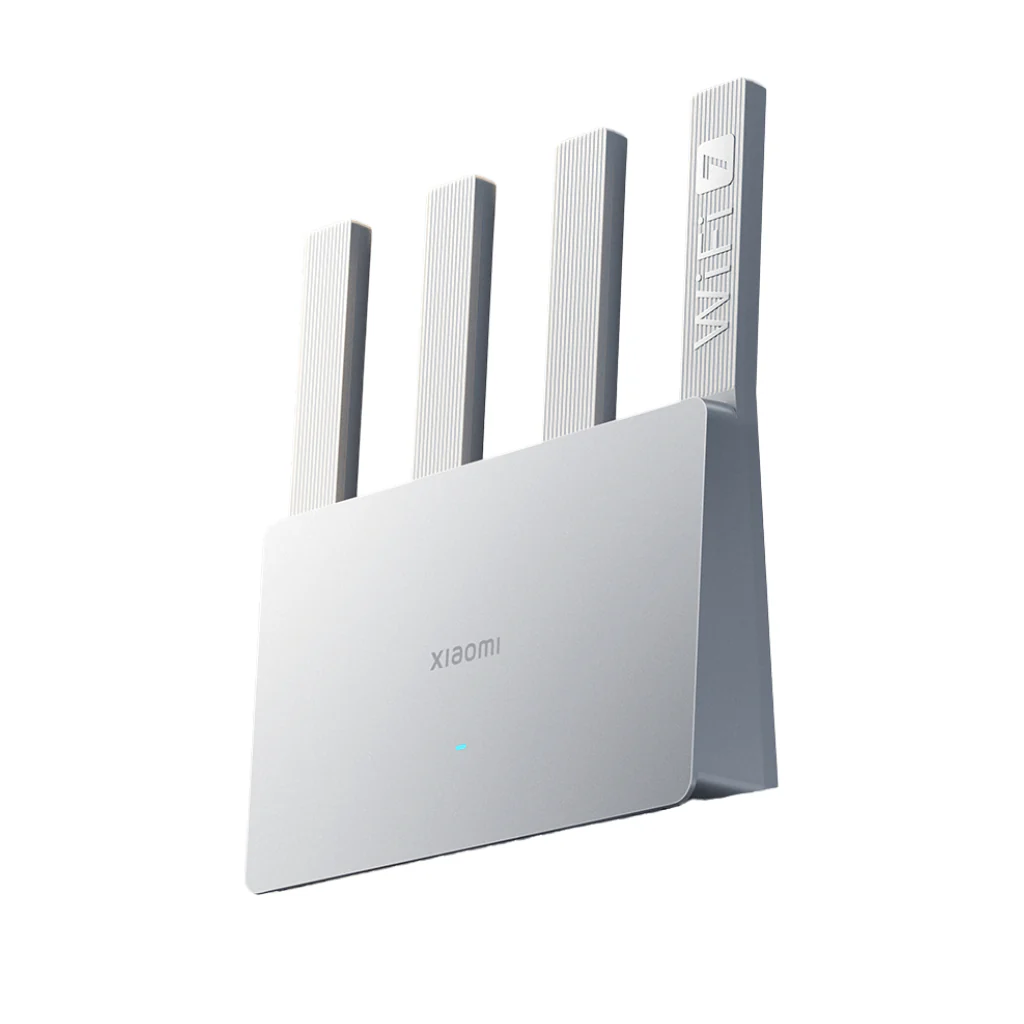

Product Name: Xiaomi Router BE3600
Wireless Standard: Wi-Fi 7 (IEEE 802.11be)
Maximum Theoretical Rate: 3570 Mbps (Dual-band combined)
Color: White
Key Features: 2.5G High-Speed Port, 4K QAM Technology, MLO (Multi-Link Operation), Xiaomi Mesh Networking

Wireless Specifications

Dual-band: 2.4 GHz & 5 GHz
2.4G Wi-Fi: 2×2 (Up to 688 Mbps)
5G Wi-Fi: 2×2 (Up to 2882 Mbps)
Modulation: Supports up to 4096 QAM (11be)
Antennas: 4 × External High-gain antennas

Hardware Configuration

Processor: Qualcomm Quad-core CPU

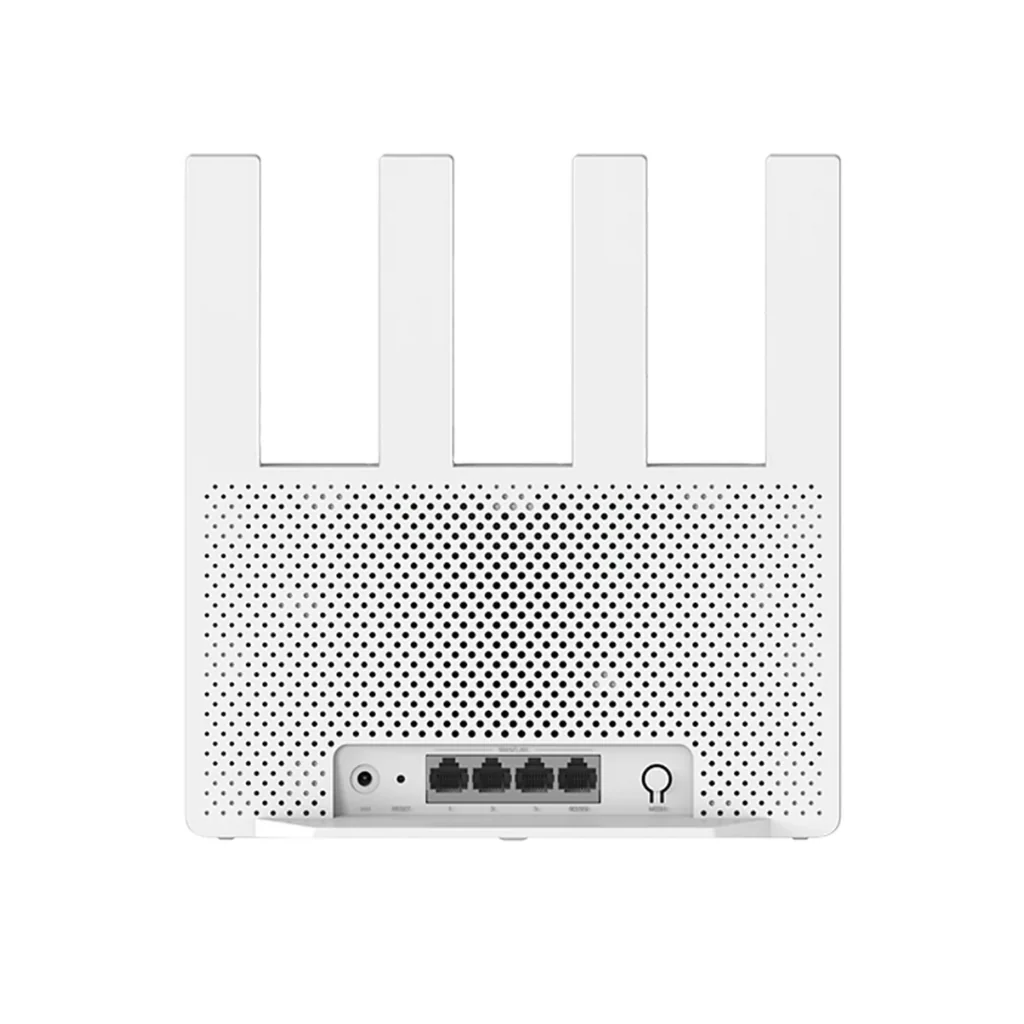

Network Ports:
- 1 × 10/100/1000/2500 Mbps WAN/LAN auto-sensing port
- 3 × 10/100/1000 Mbps WAN/LAN auto-sensing ports
LED Indicator: Single status light
Buttons: Reset button ×1, Mesh button ×1

Software & Security

Operating System: MiWiFi ROM
Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE
Network Security: Wireless access control (Black/White list), SSID hiding, Anti-piggybacking protection
Management: Web access and Xiaomi Home App (Android & iOS)

Physical Specs & Environment

Dimensions: 209.98 x 40.95 x 219.83 mm
Heat Dissipation: Natural heat dissipation
Operating Temperature: 0–40℃
Operating Humidity: 10%–90% RH (non-condensing)

Package Contents

Xiaomi Router BE3600 × 1
Power Adapter × 1
Network Cable × 1
User Manual × 1
Warranty Card × 1
